Why Manganin Wire Is Used In A Meter Bridge

Let’s talk about why copper wire isn’t the best choice for meter bridges.

Copper has a low resistance and a high temperature coefficient of resistance, which means its resistance changes significantly with temperature fluctuations. This is a problem for meter bridges because they rely on precise measurements of resistance. If the resistance of the copper wire changes, it will affect the accuracy of the measurements.

Think of it like this: a meter bridge is like a very sensitive scale. You need it to be perfectly balanced to get an accurate reading. If the wire you’re using to measure something is changing its weight (resistance) all the time, your scale (meter bridge) will be off.

Here’s why copper’s characteristics make it unsuitable for a meter bridge:

Low Resistance: A meter bridge works by comparing the resistance of an unknown resistor to a known resistance. The resistance of the wire itself should be negligible compared to the resistors being measured. Copper’s low resistance can lead to errors in these comparisons.
High Temperature Coefficient of Resistance: Even slight temperature changes can drastically alter the resistance of copper wire. This variability can cause inaccurate readings in the meter bridge, which needs stable resistance measurements.

That’s why meter bridges typically use materials like manganin which have a very low temperature coefficient of resistance and a higher resistance value. These materials ensure accurate and consistent readings, even in changing temperatures.

Constantan is a great choice for the bridge wire in a meter bridge because it has high resistivity and its resistivity remains consistent over a wide range of temperatures. This is important because the meter bridge relies on precise resistance measurements.

Let’s break down why these properties are so crucial:

High Resistivity: A high resistivity means that the wire offers significant resistance to the flow of electricity. This is essential for a meter bridge because it allows for accurate measurements of unknown resistances. Think of it like a narrow road – the more narrow the road, the more resistance there is to traffic.

Uniform Resistivity: The fact that constantan’s resistivity doesn’t change much with temperature fluctuations is super important. If the resistivity changed drastically with temperature, it would create errors in your measurements. You want the wire to be a predictable and consistent component of the bridge. It’s like having a road with a constant width – you know exactly how much traffic it can handle, no matter the weather.

Think of it this way: Imagine you’re trying to measure the length of a room using a tape measure that stretches or shrinks depending on the temperature. You wouldn’t get accurate measurements, right? It’s the same with a meter bridge – the bridge wire needs to be a reliable and constant component for accurate results. Constantan’s consistent resistivity ensures that this is the case.

Meter bridges use special wires for their construction. The wires must be chosen carefully for accurate measurements. You’ll often find manganin, constantan, nichrome, or eureka in a meter bridge. These alloys are preferred because they have a low temperature coefficient of resistivity.

Let’s break that down:

Temperature coefficient of resistivity: This describes how much a material’s resistance changes with temperature. A low temperature coefficient means the resistance stays pretty much the same even if the temperature fluctuates a bit. That’s crucial for a meter bridge because you want the resistance to be predictable and stable for your measurements.

Why use alloys? Alloys are mixtures of different metals. Combining metals can give you a material with better properties than any of the individual metals alone. For instance, manganin is an alloy of copper, manganese, and nickel. It has a very low temperature coefficient of resistivity, making it perfect for precise resistance measurements. Constantan, another common choice, is made from nickel and copper. It’s also known for its stability, even at higher temperatures.

In short, these special alloys are the workhorses of the meter bridge because they keep resistance stable and predictable, allowing for accurate measurements.

A meter bridge, also known as a slide wire bridge, is a device used to accurately measure an unknown resistance. The key to its functionality lies in using a high resistance wire. This wire is strategically chosen because high resistance leads to a very low current flowing through the bridge. Why is this important? Well, it allows for a more sensitive measurement.

Let’s break it down. Imagine a scenario where you have a low resistance wire. In this case, a substantial amount of current would flow through the bridge. This high current makes it difficult to detect a slight change in resistance, especially if you are using a standard galvanometer. Think of it like trying to hear a whisper in a crowded room – it’s hard to distinguish the subtle sound.

By using a high resistance wire, we significantly reduce the current flowing through the bridge. This allows for more sensitive measurements. A slight change in resistance now translates to a noticeable change in current. This change in current can be detected by a galvanometer, even if it’s a relatively low current. It’s like having a quiet room – any sound, even a whisper, becomes noticeable.

In essence, a high resistance wire allows the meter bridge to be more sensitive to small changes in resistance. This sensitivity is crucial for obtaining accurate and precise measurements.

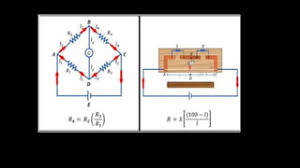

Meter bridges rely on the principle of Wheatstone bridge, where a known resistance is compared to an unknown resistance. To achieve accurate measurements, the wires used in the bridge need to possess specific properties. Constantan and manganin are ideal choices because they have high resistance and low temperature coefficient of resistance.

Let’s break down why these properties are crucial:

High Resistance: This ensures that the resistance of the wire itself doesn’t significantly impact the overall resistance measured. A high resistance wire allows for a larger range of resistance values to be measured accurately.

Low Temperature Coefficient of Resistance: This means that the resistance of the wire changes very little with temperature fluctuations. Imagine you’re meticulously conducting an experiment, but the slightest change in the room temperature throws off your measurements. A low temperature coefficient helps to eliminate this problem, ensuring stable and reliable results.

Constantan and manganin are alloys specifically designed to exhibit these properties. They are often preferred over materials like nichrome in meter bridges due to their superior stability in resistance over a wide temperature range. The low temperature coefficient helps maintain the accuracy of measurements even if there are minor temperature changes during the experiment.

Think of it this way: Constantan and manganin act like reliable measuring tools, ensuring consistent and accurate readings, regardless of external factors like temperature changes. Their properties make them ideal for meter bridges, allowing scientists and engineers to perform precise resistance measurements and explore the fascinating world of electricity.

Pure copper wire is not typically used as a fuse wire because it has a high melting point. This means that it won’t melt easily when a short circuit occurs.

Let’s break down why this is a problem:

Fuse wires are designed to melt and break a circuit when there’s an overload of current. This prevents damage to other components in the electrical system.
Copper has a high melting point, which is a good thing in most applications. It makes copper a great conductor and allows it to withstand high temperatures without melting.
* However, in a fuse, we want a material that melts quickly when a short circuit occurs. This is because a short circuit is a dangerous situation where current takes an unintended path, often with high levels of current flow.

So, while copper is an excellent conductor, its high melting point makes it unsuitable for fuse applications. Instead, we use materials with much lower melting points like lead-tin alloys which melt quickly and safely interrupt the circuit during a short circuit.

Manganin is a fantastic choice for making standard resistors because it has a low temperature coefficient of resistance and high resistivity. This means that the resistance of manganin wire stays remarkably stable even when the temperature changes. This stability is exactly what we need in standard resistors, as we want them to provide a consistent and predictable resistance value regardless of the surrounding environment.

Let’s delve a little deeper into why these properties make manganin so special for this application.

Low Temperature Coefficient of Resistance: The temperature coefficient of resistance tells us how much the resistance of a material changes for every degree Celsius change in temperature. A low temperature coefficient means that the resistance changes very little, even with significant temperature fluctuations. Manganin’s extremely low coefficient (around 0.00002 per degree Celsius) ensures that its resistance stays remarkably consistent across a wide temperature range.

High Resistivity: Resistivity measures a material’s resistance to the flow of electrical current. High resistivity means that the material offers more resistance to the current. This is crucial for standard resistors because it allows us to create resistors with specific resistance values using relatively short lengths of wire. Manganin’s high resistivity enables the creation of precise and compact standard resistors.

Imagine using a material with a high temperature coefficient. If you used it to build a standard resistor, its resistance would fluctuate wildly with even small temperature changes. This would make it unreliable and useless for precise measurements.

Manganin’s unique combination of these two properties makes it the ideal material for creating accurate and reliable standard resistors, which are essential components in countless electrical and electronic circuits.

We’re trying to figure out which wire is either nichrome, manganin, or constantan. These wires are often used in electrical circuits because they have high resistance and a low temperature coefficient of resistance. This means they can handle a lot of heat without changing their resistance too much.

Let’s talk a bit more about the meter bridge, which uses these special wires. The meter bridge is a simple, yet very useful, type of circuit. It’s based on the principles of the Wheatstone bridge, a circuit that helps us measure unknown resistances. The meter bridge works by balancing the resistance of the unknown wire with a known resistance. It’s like a seesaw—when the resistances on both sides are equal, the bridge is balanced.

Now, back to our nichrome, manganin, and constantan wires. These wires are made from special alloys (mixtures of metals) that give them specific properties. Nichrome is a good choice for heating elements in things like toasters and hairdryers because it can withstand high temperatures. Manganin and constantan are known for their low temperature coefficient of resistance, which makes them ideal for precision electrical measurements.

Think of it like this: nichrome is like a strong athlete who can handle lots of heat, while manganin and constantan are like precise instruments that stay consistent even when things heat up. So, depending on what you need the wire for, you can choose the best one for the job!

You’re right to ask about the materials used in a meter bridge! It’s important to choose the right stuff to make sure it works properly.

Meter bridges use wires made from nichrome, constantan, or manganin. These materials are chosen because they have high resistance and a low temperature coefficient of resistance.

High resistance is important because it means the wire will resist the flow of electricity. This is essential for the meter bridge to work correctly. A low temperature coefficient of resistance means that the wire’s resistance doesn’t change much as the temperature changes. This is important because you want the meter bridge to give accurate readings, no matter what the temperature is.

Why are these materials good choices for a meter bridge?

Let’s break down why these specific materials are great for meter bridges:

High Resistance: Imagine a wire as a tiny road for electricity. If the road is narrow and bumpy (high resistance), the electricity has to work harder to travel through it. This is exactly what you want in a meter bridge! You need the wire to have a good amount of resistance to create a measurable change in the current.
Low Temperature Coefficient of Resistance: Now imagine the road is made of material that expands and contracts in the heat (high temperature coefficient of resistance). That would make the road uneven, and the electricity might have to work differently at different temperatures. A meter bridge needs to be reliable, no matter the temperature, so materials with low temperature coefficients are crucial.

Nichrome, constantan, and manganin are perfect because they have a happy medium – they’re resistant enough to create a measurable difference, but they don’t change their resistance too much with temperature changes, ensuring a stable and accurate reading.

You’re right to be curious about the materials used in a meter bridge! It’s important to choose the right wire for this type of experiment.

Meter bridge wire is typically made from alloys like manganin, constantan, nichrome, or Eureka. These alloys are chosen because they have a low temperature coefficient of resistivity. Let’s break down why this is so important.

Imagine you’re trying to measure resistance using a meter bridge. If the wire’s resistance changes a lot with temperature, even a slight change in the room’s temperature could throw off your measurements. That’s where these alloys come in. Their low temperature coefficient of resistivity means their resistance stays relatively stable even if the temperature fluctuates.

Here’s why these alloys are so special:

Manganin is a copper-nickel-manganese alloy that’s known for its very low temperature coefficient of resistivity. It’s often the go-to choice for precision measurements.
Constantan is a copper-nickel alloy. Its resistivity is almost constant over a wide range of temperatures, making it suitable for applications where temperature stability is crucial.
Nichrome is a nickel-chromium alloy. It has a high resistance and can withstand high temperatures, making it ideal for applications like heating elements.
Eureka is another nickel-chromium alloy, similar to nichrome, that’s also used for its high resistance and stability.

These alloys are crucial for reliable and accurate measurements using a meter bridge. Choosing the right material ensures that your experiment won’t be affected by temperature changes, giving you more precise results.

Let’s talk about meter bridges, a super cool electrical tool that helps us figure out the value of unknown resistance.

Imagine a wire, a meter long, that’s perfectly uniform from end to end. This wire is made from special materials like nichrome, manganin, or constantan. Why these materials? Because they’re rockstars at resisting electricity and don’t change their resistance much when the temperature changes.

This wire acts like a super accurate ruler, allowing us to precisely measure resistance. It’s like a detective who helps us find the hidden resistance of any electrical component!

Here’s how it works:

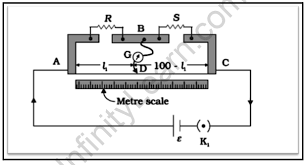

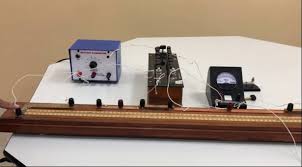

The meter bridge has a wire of uniform cross-section stretched across a meter-long scale. This wire is usually made of manganin or constantan, which are alloys known for their high resistivity and low temperature coefficient of resistance. This means their resistance is pretty much constant even when the temperature changes, making them perfect for accurate measurements.

Let’s break it down:

1. The Setup: The meter bridge consists of a wire stretched along a meter-long scale. This wire is usually made of a material like manganin, which is chosen for its high resistance and low temperature dependence.

2. The Unknown Resistance: To find the unknown resistance, we connect it to the meter bridge along with a known standard resistance.

3. The Balancing Point: A galvanometer is used to find the balancing point. This is the point on the meter bridge where the galvanometer shows zero deflection, indicating that the potential difference between the two points connected to the galvanometer is zero.

4. The Calculation: The balancing point on the meter bridge helps us determine the unknown resistance. The ratio of the lengths of the wire on either side of the balancing point directly corresponds to the ratio of the known and unknown resistances.

What’s so great about meter bridges?

They are simple, accurate, and easy to use. They are widely used in laboratories for determining the value of unknown resistances. The meter bridge provides a hands-on experience in understanding the concepts of resistance, potential difference, and current flow in a circuit.
