Let’s discuss the question: how to override dimension in autocad. We summarize all relevant answers in section Q&A of website Linksofstrathaven.com in category: Blog Finance. See more related questions in the comments below.
How do I manually change dimensions in AutoCAD?
- Click Home tab Annotation panel Dimension Style. …
- In the Dimension Style Manager, select the style you want to change. …
- In the Modify Dimension Style dialog box, Fit tab, under Fine Tuning, select Place Text Manually When Dimensioning.
- Click OK.
How do you unlock dimensions in AutoCAD?
- Right-click on a fitting and click Edit. …
- On the Dimensions tab, select a dimension that will always be the same, and enter the dimension in the Value field, as shown below.
- Lock or unlock the dimension by clicking on the unlock or lock icon.

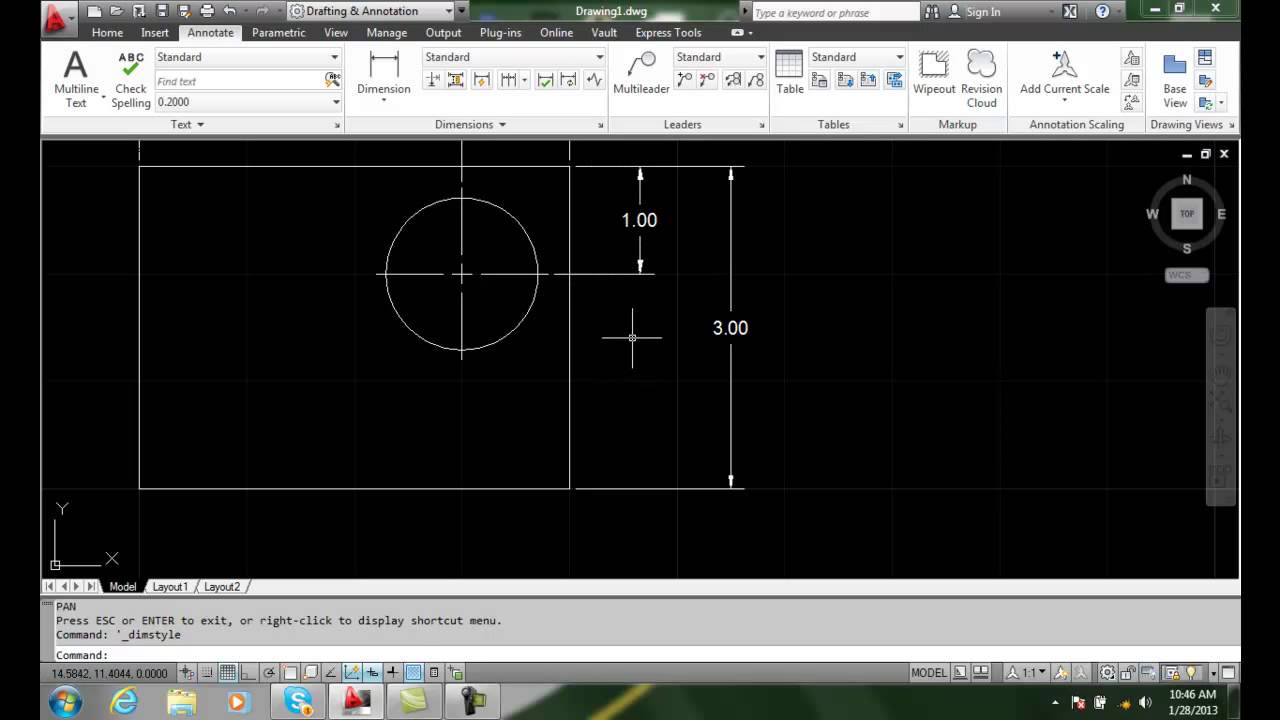

AutoCAD II 20-10 Overriding Dimension Style Existing Dimensions
Images related to the topicAutoCAD II 20-10 Overriding Dimension Style Existing Dimensions
How do you Reassociate dimensions in AutoCAD?
Associate or Reassociate a Dimension Using the Ribbon
To associate the dimension to specific geometry, enter s (Select object) and select the geometry. To reassociate, select the reference point on an object, using object snaps as needed, to associate the indicated extension line.
How do I fix overlapping dimensions in AutoCAD?
Select object to break dimensions or [Auto/Remove] <Auto>: Select the Dimension Line(s) overlaps the dimension previously selected that will be broken. Select object to break dimensions: This is a running command keep selecting all Dimension Lines necessary for the results needed, once done Enter to finish the command.
How do I change dimensions in AutoCAD 2021?
- Do one of the following: …
- In the Dimension Style Manager, Styles list, select the style you want to change.
- Click Modify.
- In Modify Dimension Style dialog box, Fit tab, under Scale for Dimension Features: …
- Click OK.
- Click Close to exit the Dimension Style Manager.
Why are my dimensions wrong in AutoCAD?
Check the units of the drawing are set correctly (enter the UNITS command). The units may have been changed from when the drawing was originally created. Check objects for Elevation or Start Z / End Z values (via Properties palette). Dimensioning from 2D to 3D space can throw off values.
How do I fix dimensions in AutoCAD?
- 1) Click on the ‘Annotation drop-down’ arrow in the ‘Home’ tab.
- 2) Click on the ‘Dimension style’ (second icon) from all options. …
- 3) Now click on the ‘Modify’ and one another dialogue box will open.
- 4) From this dialogue box, you can edit arrows & symbols, text, lines, units, etc.
Why are my dimensions huge in AutoCAD?
Causes: The text style applied to the text objects has a height applied (instead of zero) and the viewport in paper space does not have the correct annotative scale. The annotation scale applied to the text objects has been customized and is very large.
How do you turn off dynamic input in AutoCAD?
- Press the F12 key to toggle Dynamic Input on and off.
- Change the DYNMODE variable to 1 for on, or 0 for off.
- Toggle the dynamic input icon in the lower-left or lower-right corner of the program:

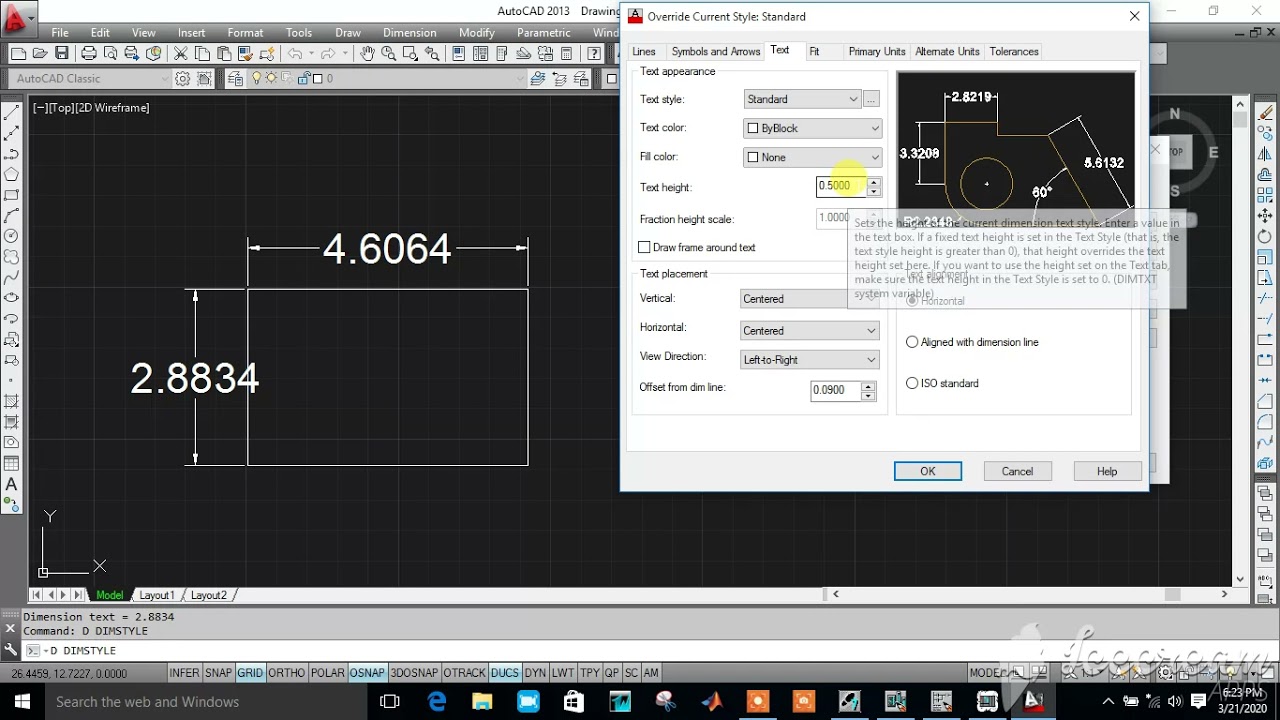

How to create dimensions in AutoCAD | Dimension style override
Images related to the topicHow to create dimensions in AutoCAD | Dimension style override
How do you remove dimension error in AutoCAD?
- To toggle the annotation monitor off: At the command line type ANNOMONITOR and set this variable to 0 to turn the alert off.
- To keep the annotation monitor on, and reassociate the dissociated dimension:
What does Reassociate mean in AutoCAD?
That is when the user is notified with a marker placed next to the dimension and by the alert icon in the drawing status bar. When the user selects the marker a menu will appear with options to reassociate or delete the dimension.
How do you override text in AutoCAD?
Select the dimension on which to override a dimension value, and click AEC Dimension tab Modify panel Override Text & Lines . Click the value to override.
How do you break a dimension line?
- Click Annotate tab Dimension panel drop-down Break. Find.
- Select the dimension line or extension line to break (1).
- Press ENTER.
How do you show a broken dimension?
- Click Annotate tab Dimensions panel Break. …
- Select a dimension or multileader.
- Enter m (Manual) and press Enter.
- Specify the first point on the dimension, extension, or leader line for the dimension break.
How do I change dimension text size in AutoCAD?
…
Manually changing the text height of a dimension:
- Select the dimension.
- Open the Properties palette.
- In the Text section, change Text height to the desired value.
How do you calibrate dimensions in AutoCAD?
- Click Home tab Annotation panel Dimension Style. …
- In the Dimension Style Manager, select the style you want to change. …
- In Modify Dimension Style dialog box, Fit tab, under Scale for Dimension Features, enter a value for the overall scale.
- Click OK.
Override Dimension || Dimension Style Manager in AutoCAD
Images related to the topicOverride Dimension || Dimension Style Manager in AutoCAD
How do you scale measurements in paper space?
Go to Dimension Style Manager by typing DIMSTYLE in the command line, or clicking on the dimension style icon. Select the dimension style you will be using, and click Modify. In the Fit tab, set the Dimension Scale to 1. In the Primary Units tab, set the Measurement Scale to 1.
How do I change the scale of paper space in AutoCAD?
Setting the Scale in a Paper Space Viewport
Select No from the Display Locked menu in the Properties panel. The viewport will be unlocked. Center your view in the viewport, and make sure it’s set to a 1:1 scale. You can then use the Scale tool to set the scale for that viewport.
